Pedestal Pumps
Pedestal pumps—Models 501 & 502—
feature heavy-duty bearing
housings with:
Exclusive, stainless steel (316) heavy-duty shafts: 3 & 5HP (1.25”
diameter) and 7.5 & 10HP (1.75” diameter). Most other makes in the
industry offer smaller-diameter shafts.
Exclusive, oversized, double-row ball bearings on all models.
Most other makes offer smaller, single-row bearings.
Greater versatility because the choice of motors is unlimited, and these
models can be belt driven.
Click here for performance curves

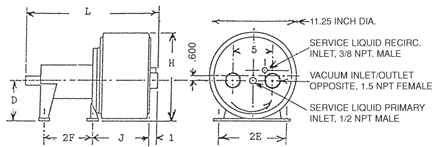

Pedestal Models 501 & 502 (*1):
| |
HP |
RPM |
VOLTAGE |
FRAME |
L |
O |
W |
H |
D |
2E |
2F |
J |
PUMP
WGT |
SHIP
WGT |
| -40 |
3 |
|
|
|
17 |
|
11 1⁄4 |
11 1⁄2 |
5 1⁄4 |
8 1⁄2 |
7 |
5 1⁄2 |
78 |
90 |
| -80 |
5 |
|
|
|
18 3⁄4 |
|
11 1⁄4 |
11 1⁄2 |
5 1⁄4 |
8 1⁄2 |
7 |
8 1/4 |
85 |
95 |
| -120 |
7.5 |
|
|
|
20 3⁄4 |
|
11 1⁄4 |
11 1⁄2 |
5 1⁄4 |
8 1⁄2 |
7 |
10 1/4 |
90 |
105 |
| -160 |
10 |
|
|
|
23 1⁄4 |
|
11 1⁄4 |
11 1⁄2 |
5 1⁄4 |
8 1⁄2 |
7 |
11 3/4 |
98 |
115 |
*1) Dimensions in inches and weight in pounds.
*2) Next size larger motor required with 1750 RPM motors with 1.00SF (Service Factor).

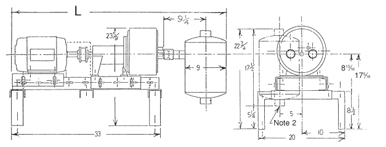

Pedestal Pump Packages w/o Recirculation Tank, Models 501 & 502BLMS,
and w/ Recirculation Tank, Models 501 & 502BLRS (*1):
| |
HP |
RPM |
LGTH(L) |
WDTH(W) |
HGHT(H)
W/O REC. TNK. |
HGHT(H) W/REC.
TNK.(*3) |
WGT |
SHIPWGT |
ADD FOR
REC. TNK |
| -40 |
3 |
1750 |
48 |
20 |
23 5⁄8 |
39 5⁄8 |
235 |
285 |
115 |
| -80 |
5 |
1750 |
50 |
20 |
23 5⁄8 |
39 5⁄8 |
255 |
305 |
115 |
| -120 |
7.5 |
1750 |
54 |
20 |
23 5⁄8 |
39 5⁄8 |
310 |
375 |
115 |
| -160 |
10 |
1750 |
58 |
20 |
23 5⁄8 |
39 5⁄8 |
335 |
450 |
115 |
*1) Dimensions in inches and weight in pounds.
*2) Separator/muffler connections, top and bottom: 2” OD tube.
*3) Recirculation tank overall dimensions: 33(L) x 20(W) x 16(H).
|
