Operation Instructions
General Rules | Service Liquid Supply | Preventing Scale Build Up | Seals
Avoiding Exhaust Back Pressure |
Avoiding Cavitation and Slugging | Greasing Bearings
General Rules:
- Donʼt let the pump run dry
- Prevent scale buildup
- Replace shaft seal if leaking
- Avoid exhaust back pressure
- Avoid Cavitation and Slugging
- Grease bearings as instructed

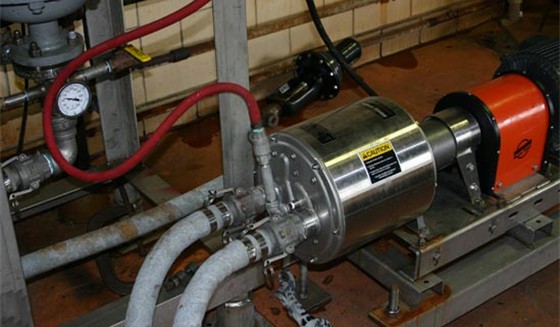

Service Liquid Supply: The principle of a liquid ring vacuum pump depends on a continuous
supply of the correct amount of clean, cool, service liquid (usually water). Without service
liquid, the pump will not perform, and the pump will run dry. This will also cause the shaft seal to overheat and shorten its life. To assure this continuous supply of service liquid…
Avoid getting debris into the service liquid line which can plug the strainer, solenoid
valve and flow control orifice. This might include loose rust or metal filings. Inspect
more frequently when the supply water is hard or dirty.
Repair or replace solenoid valve immediately if it is observed to be occasionally
sticking.
In recirculation systems, keep the tank and water clean by changing the water
periodically, and keep the flow control orifice in the recirculation hose unplugged.
Check service liquid flow to the pump immediately if the system doesnʼt come up to
vacuum when the pump starts, or if there is a loss of vacuum during operation.
Preventing Scale Buildup: Scale buildup is responsible for shortened seal life, reduced
capacity and vibration. In hard water areas, use of a water softener is desirable; otherwise,
descaling acid can be used periodically without hurting the Lyco pump, since it is made from stainless steel.
Check the pump every two weeks after installation to get a feel for how fast scale builds up. This will determine how frequently descaling acid should be used. Check by looking inside the
exhaust port for buildup. With a recirculation system, check the clearness of the recirculation
hose.
One cup of descaling acid can be put into the pump along with service liquid water, and be
allowed to stand while the pump is off between runs. The acid can be sucked into the pump
through the service liquid recirculation inlet in the front of the pump just before it is shut off, see “Piping Connections”. If a recirculation tank is used, descaling acid can be
mixed with the water in the tank either manually or with a dispenser.
Seals: Normal shaft seal life with clean, scale free operation is estimated to range from one
to five years depending on how continuous and severe the duty is. The most common causes
for shortened seal life are pumps running dry and scale buildup.
Another cause might be incompatibility of seal materials with chemicals in the vacuum
process. Standard materials used in shaft seal (Buna N), O-rings (Buna N), gaskets
(Neoprene) and body seals (Noryl) are compatible with most chemicals. For others, a wide
variety of optional materials are available from Lyco.
The pump will continue to produce vacuum with a leaking shaft seal, so a leak will not be
noticed until the leak is physically observed dripping from between the back of the pump and
the front of the motor or bearing housing.
A leaking shaft seal should be replaced as soon as possible, since service liquid can
eventually work back along the shaft, around the slinger and bearing seal, flush out the
bearing grease and cause a bearing failure.
If a leaking seal can not be replaced immediately, and if the pump is a pedestal Model 501& 502, bearing grease can be replaced to prevent a failure. This is not possible with closecoupled,
Models 101 & 102, which have motors with sealed bearings.
Lyco vacuum pumps have only one shaft seal, and it is easy to replace if the procedures
described in the section “Pump Disassembly and Shaft Removal” are followed.
Avoiding Exhaust Back Pressure: Back pressure can severely stress pump components
and motors, and must be avoided. Refer to section “Exhaust Piping”.
Avoiding Cavitation and Slugging: Cavitation and slugging can severely stress the pump
components and motors, and must be avoided. Refer to section “Vacuum Piping”.
Greasing Bearings:
Close-coupled pumps, Models 101 & 102:
- Current close-coupled pump motors do not require greasing
because they have sealed bearings.
Pedestal mounted pumps, Models 501 & 502:
- Lubricate bearing housing while warm with power off. Use Mobil Polyrex-EM,
Mobilith SHC100, Chevron SRI No. 2, or equivalent.
- Insure grease fitting is clean and free from dirt.
- Remove the relief hole plug which is located at the front side of the bearing housing. Clean out any hardened grease that might plug up the hole.
- Use a low pressure grease gun, and pump in recommended grease until new grease appears at the relief hole. BEWARE OF OVER GREASING.
- After lubricating, allow the pump to run for a minimum of 10 minutes before replacing
relief plug.
- Applications in dusty, wet and high ambient atmospheres may require greasing as often
as every 3-4 months; however, DONʼT OVER GREASE by greasing too often.
- Note that the rear bearing (away from the shaft extension) is a sealed bearing which
requires no lubrication.
When pumps and motor are in storage for extended periods of time, manually turning the
shafts every six months will prevent bearing lubricants from hardening which can cause
bearings to fail shortly after being put in service.
